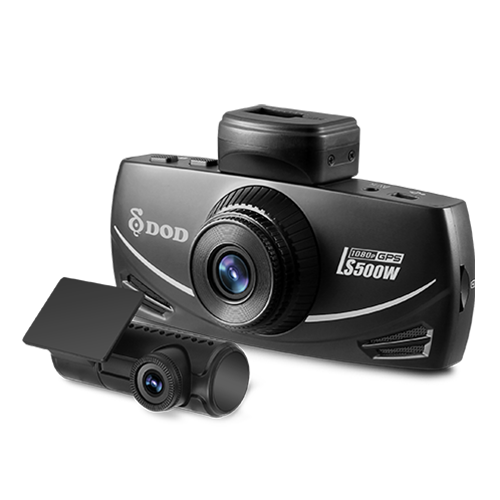

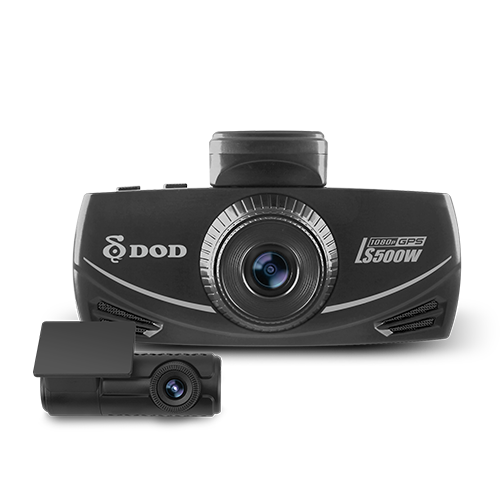

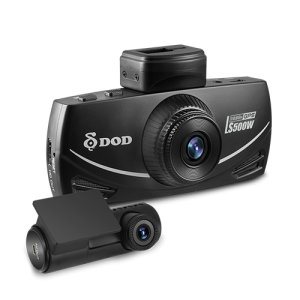

DOD LS500W Dual 1080P FULL HD car camera with GPS
Accessories Product
Replacement suction cup holder 15.00 €
Replacement 3M adhesive mount 15.00 €

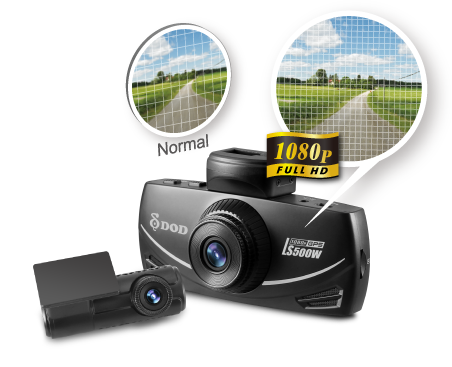

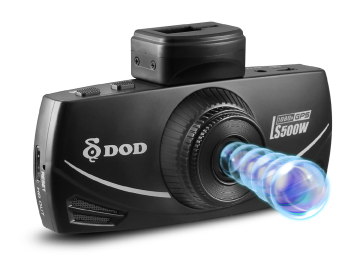

DOD LS500W Dual Full HD 1080P car camera withdash-board cameras with FULL HD 1080p full-length video recording in unrivaled quality on both camera video channels with a recording frequency of 30 fps. Captures full 1080p HD video through a large 6G glass lens with sf/1.6 aperture for bright and clear images. Image compression H.264, MOV file, data rate approx. 15 Mbps for each channel. One minute at a resolution of 1080p 30fps video from one channel is approx. 110 MB. Micro SD support up to 128 GB.

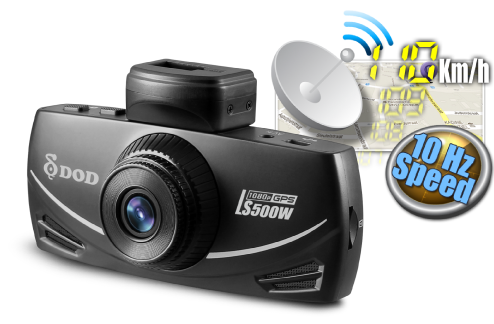

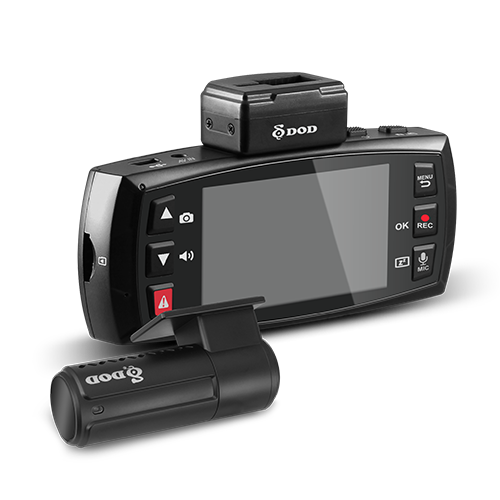

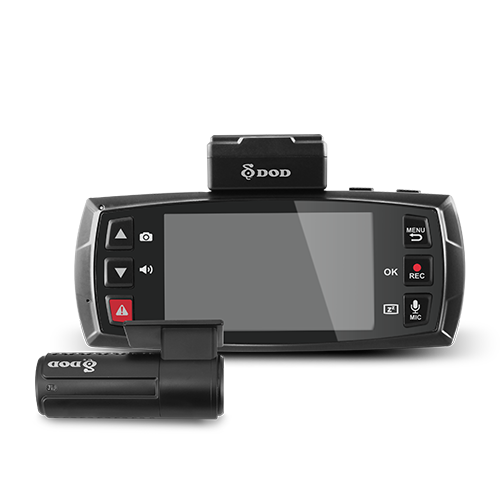

The camcorder also has an ISO sensitivity of up to 12800 for excellent shooting of under low light conditions and night video. Built-in 10 Hz GPS processor allows drivers to capture accurate speed and position. The DOD LS500W can is simply controlled via push buttons and a clear 2,7" LCD display.
DOD LS500W camera model in comparison of the model DOD RC500S is equipped with LCD 2,7" lithium battery with a capacity of 180mAh (DOD RC500S has a super capacitor). In other hand, the DOD RC500S has a feature WiFi connectivity via app on your Smartphone or tablet and a CPL polarizing filter. Other parameters and features of the DOD LS500W and RC500S cameras are the same.
The camera set has a wide-angle lens of up to 145 ° front camera and 140 ° rear camera allowing you to have a really wide-angle view around your car, approaching the fish eye parameters. The use of the rear camera is optional, the front camera can also be used separately. In term of purely optical parameters, the DOD LS500W is equivalent to the DOD RC500S (and vice versa). Also there is an option of 180-degree turn round of image for front and rear camera (camera can be mounted "down head"). Built-in lithium battery with a capacity of 180mAh.
Market leader in car safety and monitoring
Brand new PARKING MODE OF THE 3rd GENERATION
The big advantage is the improved parking mode function of the new generation upgrade 3.0. A good camera records while driving, but a better camera will keep your vehicle under surveillance 24 hours a day, 7 days a week. You have a choice of 1 of 3 modes of enhanced parking mode which suits you best: 1. AUTOMATIC MOTION DETECTION or 2.HIGH-RESOLUTION in Mini size mode - high resolution in mini size (default setting), or 3. TIME LAPSE - time lapse recording. Ensure the peace and quiet by constant recording even when you have parked and left the car.
*The condition is to have the latest camera firmware updated*
You can see how the new improved parking mode 3.0 works directly in this video:

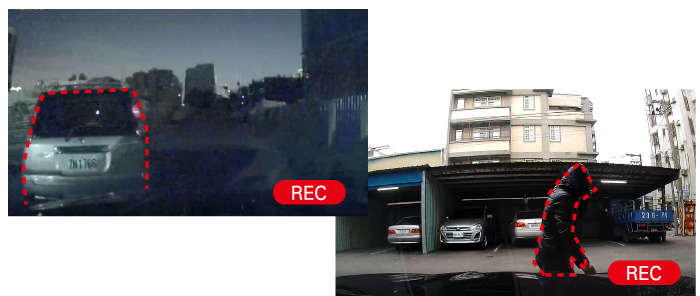

1. Auto motion or impact detection
Moving objects in front of the camera, or a dramatic change in lighting or any impact, will be evaluated automatically and recording will start if the movement/change reaches the set parameter. When motion or shock is detected, it starts recording a video file from both cameras at the same time and locks the file.

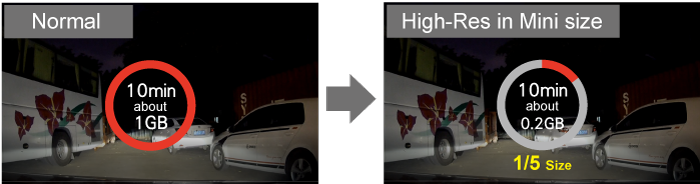

2. High-Res mode - high resolution in mini size
With a really minimal change in the quality of the recorded video, DOD Tech technology is the first and only one that manages in parking mode to record the entire recording during your absence in the vehicle with only a minimal reduction in video quality. The whole night on the video will take up about 10 GB. Less than 1/5 of the classic file size.
3. Time lapse
Do you park more days? The time delay allows you to check the contents of the days in a few minutes. The time-lapse camera takes pictures (according to the set frame rate). The function will automatically group the captured photos into a continuous video. Thanks to which you will be able to see the record from e.g. 24 hours within few minutes. Suitable for monitoring the vehicle during your long absence. Therefore, it is intended capturing static pictures, so the vehicle must not be moving.
Improved parking mode, which automatically starts 10 minutes after leaving the vehicle. When you continue driving, the camera switches back to mode of recording mode in the loop. With the SONY STARVIS Sensor, you can also enjoy the revolutionary night vision for the front camera and even in complete darkness. The condition is that the camera is powered via a car battery using a set of cables for permanent installation in the DOD DP4 vehicle. *The condition is to update the latest firmware for the camera.*
Certified camcorder meet the criteria of technical standards and can be used in the vehicle.

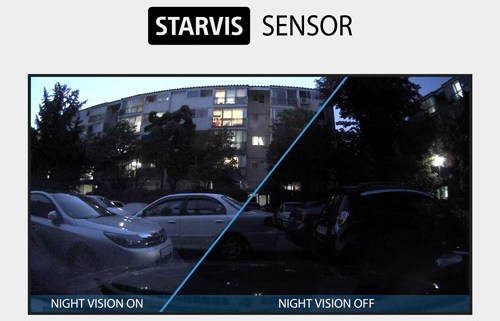

The front camera is equipped with the brand-new SONY STARVIS (Star Visibility or visibility in the light of stars) sensor IMX291, which offers revolutionary night mode even in complete darkness!
Technologically, this is the "next generation" car camera - with the latest technologies (optics, microchips, functions) that the car market offers.
DOD LS500W is one of the best camera security systems with dual front and rear cameras.
It's your guard system during day and night 24/7.
You can attach the front camera as required by the suction cup or adhesive holder. The rear camera with a compact size of only 7,5 cm is attached with a 3M holder with adhesive tape. The cable connection between the cameras is approximately 5,5 m long. The DOD LS500W can be connected to a 12/24V power supply, so it is possible to use it exept the automobile also for other vehicles, trucks or buses. The front camera is also easily attachable onto the car's windshield with a 3M adhesive holder that is easily attached to the camera.
Support for up to 128 GB micro SD card (approx. 18 hours of recording from both cameras - 9 hours for one channel)

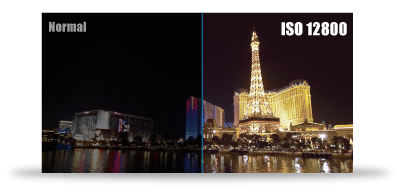

The recording is recorded from both cameras and combined with a high ISO sensitivity of up to 12800 allowing you to monitor the surroundings of the car even in bad light conditions, this feature is a significant safety bonus when monitoring your car during your absence. A great advantage is the improved new-generation parking mode system that will start recording 15 seconds before it detects movement. This will ensure that you have a record of what happened from the beginning to the end from both of the cameras in front and behind the vehicle. When you continue driving, the camera switches back to recording in the loop mode.
The camcorder supports micro SD cards up to 128GB (standard cameras up to 32GB). In the event of an accident, a severe braking or a tilting of the car, the camera kit has the G sensor function, which protects the files against the impact. Also, in an emergency, users can manually protect an existing file by long pressing the "SOS" button. The FULL HD car camera set with advanced WDR 2.0 technology and WiFi connectivity is your reliable companion on the roads.
- Dual 1080p HD video recording
- Extended ISO range to ISO 12800
- G-sensor protection of files
- SOS function - Lock function
- Parking surveillance

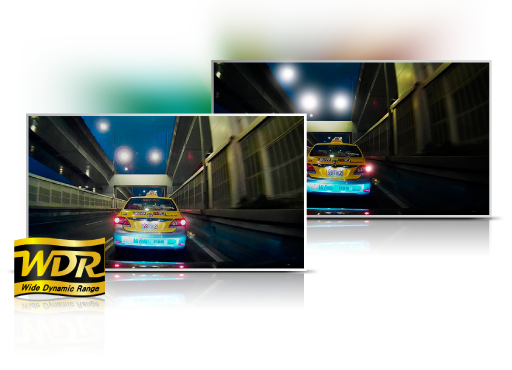

- Advanced WDR 2.0 Technology
- Ultra light lens with f/1.6 aperture
- Supports 128GB Micro SD cards
The DOD LS500W has a new Sony STARVIS CMOS sensor with improved sensitivity not only in normal lighting but also in poor lighting conditions. Enhanced range increases the brightness of fast-moving objects at night. The camera can now capture even more details in ultra low light conditions.
Big aperture reflects the amount of light falling on the sensor when shooting. The larger is the aperture (tsmaller number f), the more light will be captured in the camera sensor. With the widest apperture, which is 66% larger than the competition on the market, DOD cameras produce the sharpest picture.
Image capturing at a wide viewing angle of 145 ° for optimal coverage and clarity. The front camera is equipped with an extremely wide-angle lens, that enhances the range of recording, because the panoramic view of the front of the vehicle captures all sides without distortion (so no distorted image).
The system reminds you that you are near the location with speed limit and where a radar can be placed, so you can slow down. Avoid traps and have always your drive under control.
* Currently, the system supports the following countries: USA, CA, UK, NO, PL, NL, BE, AU.
Automatic time calibration, independent of manual time adjustment. With a built-in 10x speed GPS processor, it can accurately calibrate local time and automatically store it in camera memory.

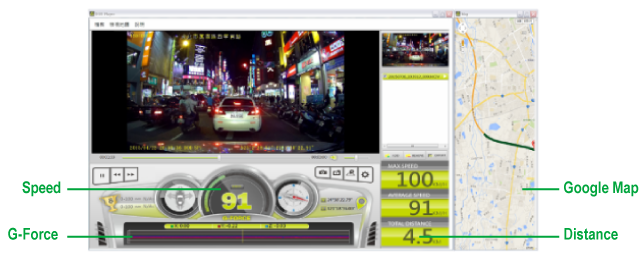

It is a new feature to calculate the distance, time and average speed of your route from point A to point B. For example, you can find the shortest or fastest way to work from your home, based on data from path analysis. It is a very economical and practical way to save time and fuel consumption.
In an accident, emergency braking, or tilting of a car, it will automatically protect all stored and current records. With this feature, files will not be deleted or overwritten, even when recording in a time loop.
In case of an emergency, it allows users to protect an existing file by long pressing the "SOS" button, which keeps the file from the recording loop and protects against being overwritten by other files.
After the vehicle is started, the camera will automatically start recording. When you turn off the engine, the camera turns off automatically without pressing any button.
Loop recording - Cyclic recording
When the storage space on the inserted microSD card is full, it can automatically overwrite older files with new ones, so the files are constantly re-deleted.
4x higher memory compatibility compared to older camera models, supports up to 128GB micro SD with over 18 hours of recording.
Sensor: SONY STARVIS CMOS sensor
Wide-angle front lens: 145 °
Wide-angle rear lens: 140 °
Front aperture: f/1.6
Rear aperture: f/1.6
ISO sensitivity: up to ISO 12800
Video format: MOV
Recording media: Micro SDHC/SDXC Class 10 (up to 128 GB)
Audio: microphone and mono speaker (included)
Battery: 3,7V 180mAh Lithium battery
Input power: 5V 1,5A
Front camera dimensions: 112,6 (D) * 61,5 (W) * 33,4 (V) mm
Rear camera dimensions: 75,2 (D) * 26 (W) * 38,8 (V) mm
Front camera weight: 110g
Rear camera weight: 41 g
Operating temperature -20 ° C ~ 65 ° C, (-4 ° F ~ 149 ° F)
Supplied accessories:
1x Profi car camera for DOD LS500W
1x Rear camera with adhesive holder
1x Interconnecting cable to rear camera (5M)
1x Car charger 12-24V (4M Extension Cable)
1x Holder
1x Manual
