DOD RC500S - WiFi car camera set with GPS and DUAL 1080P resolution and effective polarizing filter (eliminating light reflections), front and rear mini camera. This car camera has two lenses with FULL HD resolution in unrivaled quality with a recording frequency of 30 fps. Image compression H.264, MP4 file, data flow approx. 15 Mbps for each channel. One minute at a resolution of 1080p 30fps video from one channel is approx. 110 MB.
The market leader in car security and monitoring
Brand new 3rd GENERATION PARKING MODE
The big advantage is the improved parking mode function of the new generation upgrade 3.0. A good camera records while driving, but a better camera will keep your vehicle under surveillance 24 hours a day, 7 days a week. You have a choice of 1 of 3 modes of enhanced parking mode which suits you best: 1. AUTOMATIC MOTION DETECTION or 2.HIGH-RESOLUTION in Mini size mode - high resolution in mini size (default setting), or 3. TIME LAPSE - time lapse recording. Ensure the peace and quiet by constant recording even when you have parked and left the car.
You can see how the new improved parking mode 3.0 works directly in this video:
1. Auto detection of movement or impact
Moving objects in front of the camera, or a dramatic change in lighting or any impact, will be evaluated automatically and recording will start if the movement/change reaches the set parameter. When motion or shock is detected, it starts recording a video file from both cameras at the same time and locks the file.
2. High-Res mode - high resolution in mini size
With a really minimal change in the quality of the recorded video, DOD Tech technology is the first and only one that manages in parking mode to record the entire recording during your absence in the vehicle with only a minimal reduction in video quality. The whole night on the video will take up about 10 GB. Less than 1/5 of the classic file size.
3. Time lapse
Do you park more days? The time delay allows you to check the contents of the days in a few minutes. The time-lapse camera takes pictures (according to the set frame rate). The function will automatically group the captured photos into a continuous video. Thanks to which you will be able to see the record from e.g. 24 hours within few minutes. Suitable for monitoring the vehicle during your long absence. Therefore, it is intended capturing static pictures, so the vehicle must not be moving
Improved parking mode, which automatically starts 10 minutes after leaving the vehicle. When you continue driving, the camera switches back to mode of recording mode in the loop. With the SONY STARVIS Sensor, you can also enjoy the revolutionary night vision for the front camera and even in complete darkness. The condition is that the camera is powered via a car battery using a set of cables for permanent installation in the DOD DP4 vehicle. *The condition is the update the latest firmware for the camera.*

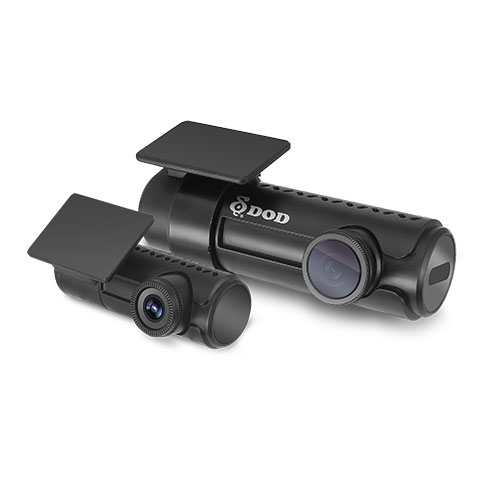

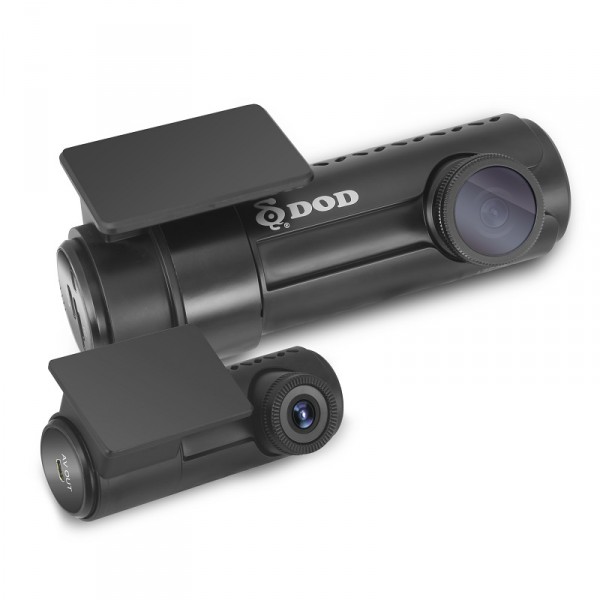

The camera set has a wide-angle lens of up to 145° for the front camera and 140° for the rear camera, which allows you to monitor a really wide angle around your car, approaching the parameters of a fish eye. The use of the rear camera is optional, the front camera can also be used separately. In terms of purely optical parameters, the DOD RC500S is equivalent to the DOD LS500W (and vice versa). The possibility to turn the image by 180 degrees for the front and rear cameras (the camera can be mounted "upside down"). The front camera is equipped with a brand new SONY STARVIS (Starlight Visibility) IMX291 sensor, which offers a revolutionary night mode, even in total darkness!!! Built-in Super capacitor instead of Li-Ion battery - for even better durability and lifetime of the camera.
Technologically, it is a "next generation" car camera - that is, currently the latest technologies (optics, microchips, functions) that the car camera market offers.
Flagship of the DOD company - a new concept of SMART car cameras
Certified car camera meet the criteria of technical standards and can be used in the vehicle.

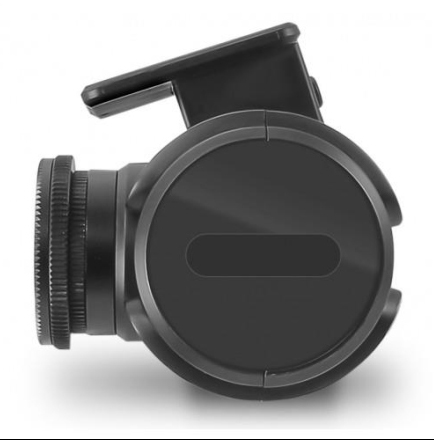

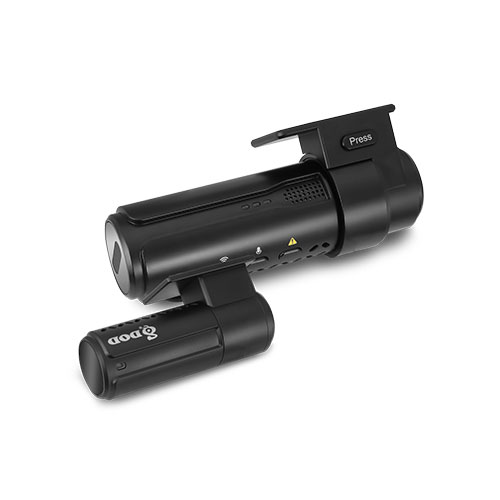

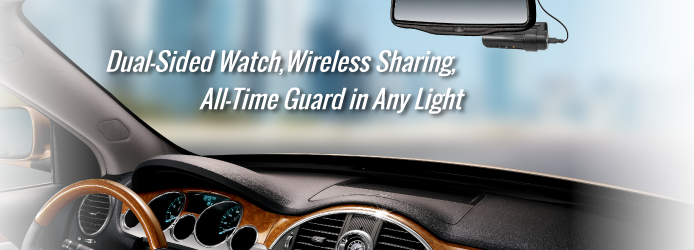

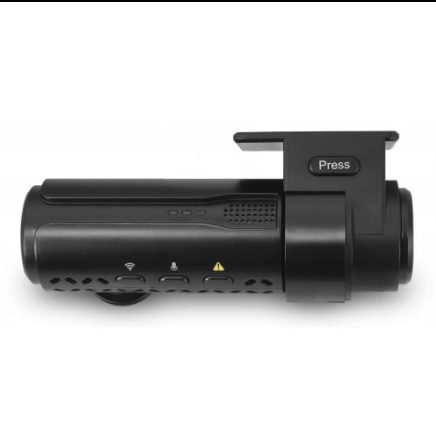

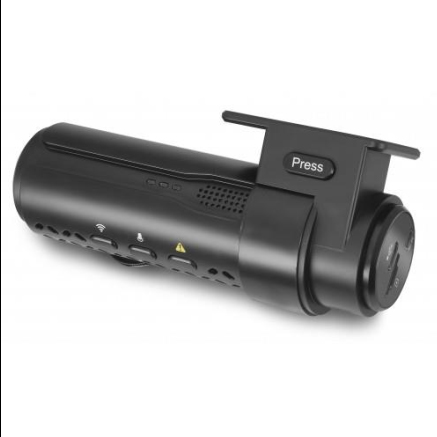

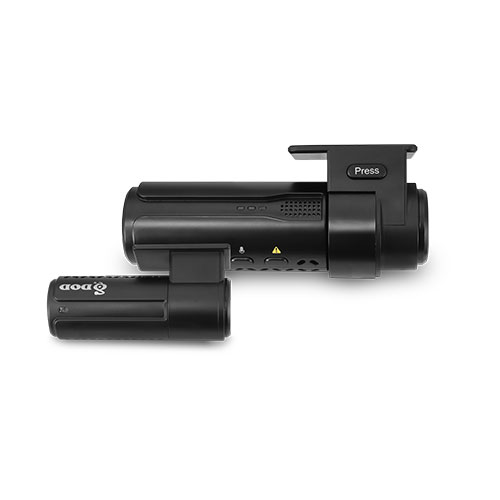

The DOD RC500S has an elegant and discreet, cylindrical shape with truly mini dimensions that allow it to install the front camera right next to the rearview mirror on top of the windshield. Thanks to this position , it will not obstruct your view at all, and above all, it is absolutely inconspicuous when viewed from the outside. The rear camera with compact dimensions of only 7.5 cm in width is fixed using a 3M holder with adhesive tape. The cable connection between the cameras is approx. 5.5 m long . DOD RC500S can be connected to a 12/24V power supply , so it can be used without any problems in other vehicles, e.g. trucks or buses. The front camera can also be easily attached to the windshield of the car using a 3M adhesive holder that attaches easily to the camera. DOD also comes with a very useful accessory - an adjustable circular polarizing filter that effectively reduces reflected light.

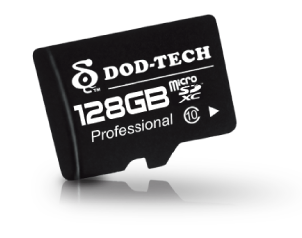

Support for up to 128 GB micro SD card (approx. 18 hours of recording from both cameras - 9 hours for one channel)
The recording is recorded from both cameras, and in combination with high ISO sensitivity, up to 12800, which allows you to monitor the surroundings of the car even in poor light conditions , this function is a significant safety bonus when monitoring the car in your absence. This makes the new DOD RC500S car camera the new market leader in safety, not only thanks to the video recording of the journey, but also the monitoring of the car in your absence .
The car camera supports micro SD cards up to 128GB (ordinary cameras only up to 32GB). In the event of an accident, sudden braking, or tilting of the car, the camera set has a G sensor function, which serves to protect files in the event of an impact. Also, in an emergency, it allows users to manually protect an existing file by long pressing the "SOS" button. FULL HD car camera set with advanced WDR 2.0 technology and WiFi connection is your reliable companion on the road.
Dual RC500S car camera set with FULL HD with WIFI support
- 1080p HD video recording
- Wide viewing angle - 145° front camera, 140° rear camera
- G-sensor file protection
- SOS function - locking function
- Parking supervision
- Advanced WDR 2.0 Technology
- WiFi connection
- Effective adjustable circular polarizing filter

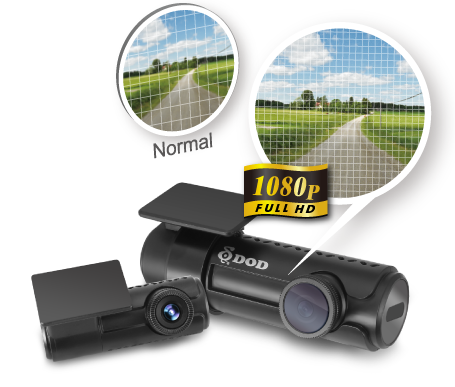

The front and rear view of your vehicle is recorded in 1080p quality in high FULL HD resolution. In addition, the image is captured in an ultra-wide viewing angle 145° front camera, 140° rear camera for total protection.
Extended ISO range up to 12800
The DOD RC500S has a new SONY STARVIS CMOS sensor with increased sensitivity not only in normal lighting, but also in low light. The extended range increases the clarity of fast-moving objects at night. The camera can now capture even more detail in ultra-low light conditions.

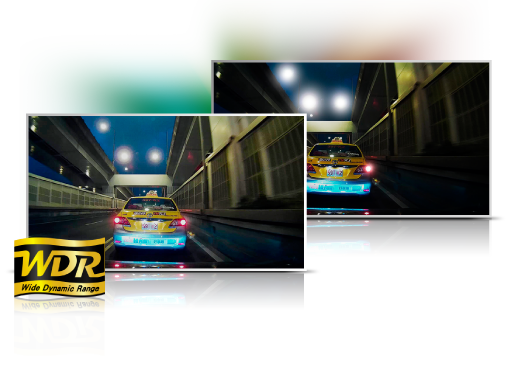

Advanced WDR 2.0 technology
Stunning video in any lighting and balanced exposure in all conditions. It creates brighter night shots, and reduces strong light exposure to achieve the most beautiful image.
Large f/1.6 aperture, high performance in low light
Aperture size reflects the amount of light hitting the sensor when shooting. The larger the aperture (smaller f-number), the more light will be captured by the camera's sensor. Thanks to the widest aperture, which is 66% larger compared to the competition on the market, DOD cameras produce the sharpest image.
6G sharp glass lens
The 6-element sharp lens, which is made of six layers of glass, provides a stunning clear and undistorted image

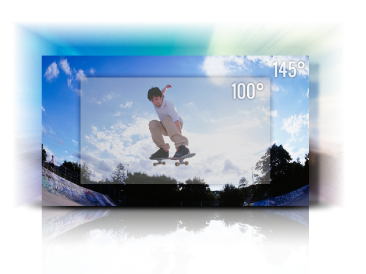

Wide viewing angle of 145 °
Image capture at a wide viewing angle of 145° for optimal coverage and clarity. The front camera is equipped with an extremely wide-angle lens, which strengthens the range of image recording because the panoramic view at the front of the vehicle covers all sides without distortion (ie no distorted image).

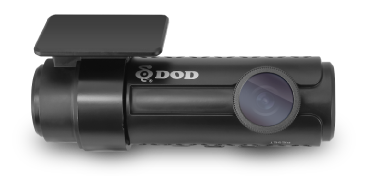

Adjustable circular polarizing filter - effectively reduces reflected light
The adjustable filter eliminates windshield glare and simultaneously increases saturation. It reduces unwanted reflections and overexposure or polarization effect, to ensure the highest image quality and protect your lens.

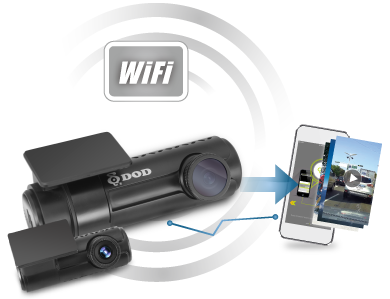

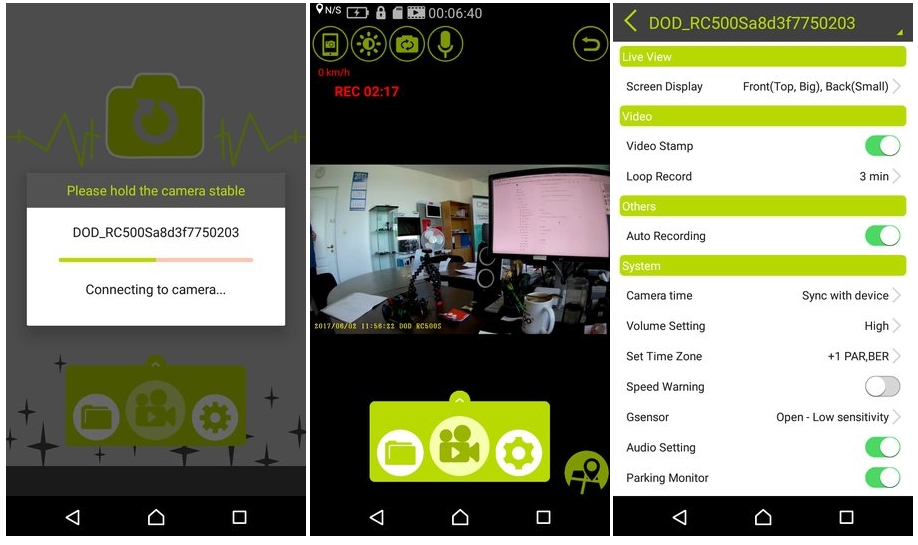

WiFi connection - browsing remotely using a free application
No more waiting whenever you want to replay exciting moments. Easily transfer or visualize files from the inserted memory card in the camera directly to your smartphone / tablet via the DOD APP.

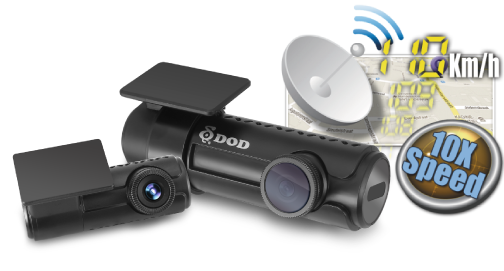

GPS processor with a speed of 10 Hz

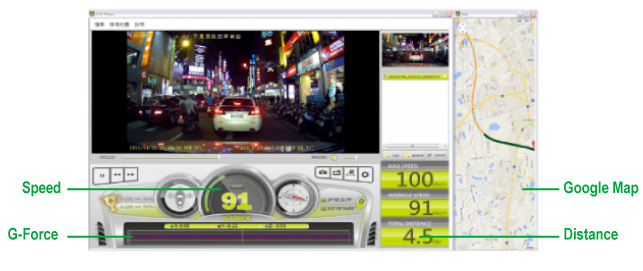

The integrated fastest GPS system with a speed of 10 Hz records more accurate data about the location and speed of the vehicle. Allows you to record the route on the map while watching videos in the DOD player application. Currently the fastest GPS update used in dash cams.
Time and date synchronization
In the event of an impact, emergency braking, or tilting of the car, it will automatically protect all saved and current records. Through this function, important files will not be deleted or overwritten, even when recording in a time loop.
In an emergency, it allows users to protect an existing file by long-pressing the "SOS" button, which keeps the file out of the recording loop and prevents it from being overwritten by another file.
When the storage space on the inserted micro SD card is full, it can automatically overwrite older files with newer ones, so the files are constantly smeared.
Sensor: SONY STARVIS CMOS sensor
Front wide-angle lens: 145 °
Rear wide-angle lens: 140 °
Front aperture: f/1.6
Rear aperture: f/1.6
ISO sensitivity: up to ISO 12800
Video format: MP4
Recording media: Micro SDHC/SDXC class 10 (up to 128 GB)
Audio: microphone and mono speaker (included)
Battery: super capacitor
Input power: 5V 1.5A
Front camera dimensions: 122 (L) * 35.8 (W) * 60.6 (H) mm
Rear camera dimensions: 75.2 (L) * 26 (W) * 38.8 (H) mm
Front camera weight: 120g
Rear camera weight: 41 g
Operating Temperature -20°C ~ 65°C, (-4°F ~ 149°F)

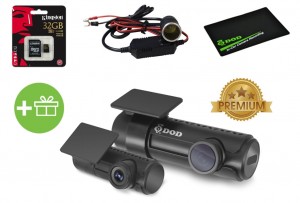

Supplied accessories:
1x Profi car camera DOD RC500S with adhesive holder
1x Rear camera with adhesive holder
1x CPL filter
1x Car charger 12-24V (extension cable 4M)
1x Connection cable with rear camera (5M)
1x Set of stickers for the camera holder
1x Installation set for fixing the cabling
1x Manual
+ Micro SD card 32GB
+ Set of cabling for permanent installation in the vehicle
+ Antislip pad
